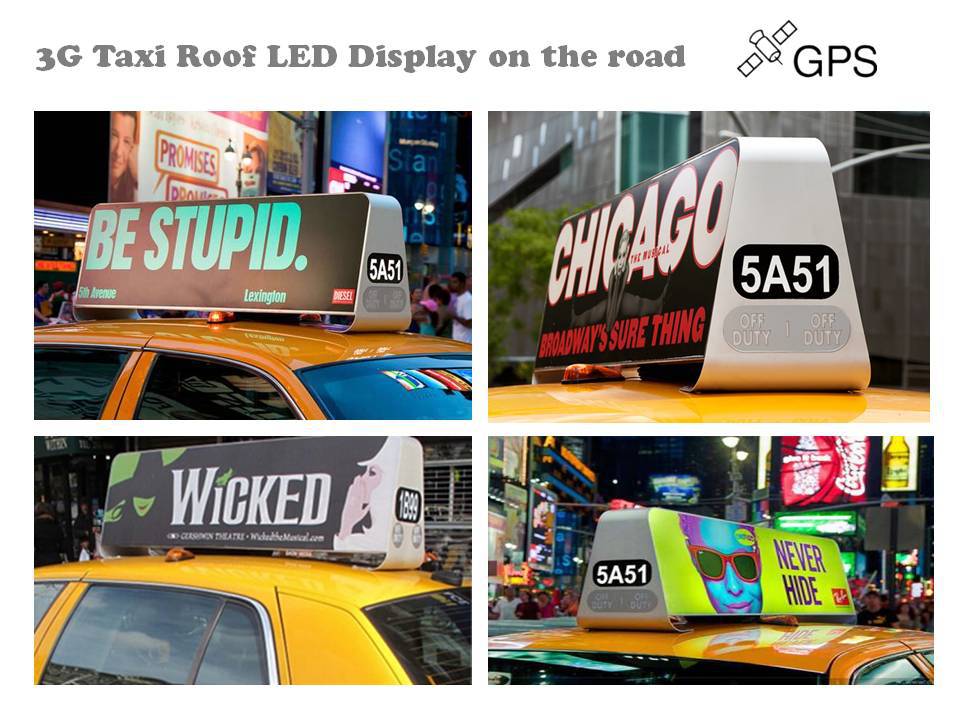

Waterproof Advanced Energy-Saving P5 Taxi Roof LED Display
Product advantages:
1. Double-Side LED screen
It can play different contents on different screens at the same
time;
2. Easy for Installation
We could provide roof rack for installation according to your need;
3. With High Brightness
Over 5500-6500 nits to be visible even under sunshine.
4. IP65 Waterproof Design
With waterproof tape around the modules and PVC board on surface to
prevent the rain and dust;
5. Light Sensor
It can play a wide range of files and automatically adjust
brightness according to different environment.
6. Reliable
Over 100000 working hours for longtime use.
Parameter
| 1 | Pixel Pitch | 5mm |
| 2 | Pixel Configuration | 3-in-1 1R1G1B |
| 3 | Pixel Density | 40000 dot/ m2 |
| 4 | Module Size | 160*160mm |
| 5 | Module Resolution | 32 *32dot |
| 6 | Module input Voltage | 5V |
| 7 | Max Consumption | 450W |
| 8 | Average Consumption | 150W |
| 9 | White Balance Color | 6000-15000K |
| 10 | Frame Size | L:1100mm H:410mm,W:157mm(bottom),75mm(top) |
| 11 | Net Screen Size | 960mm*320mm |
| 12 | Screen Resolution | 192*64 dot |
| 13 | Brightness | >5000cd/ m2 |
| 14 | Contrast Contrast | >8000:1 |
| 15 | Horizontal View Angle | 120° |
| 16 | Vertical View Angle | 120° |
| 17 | Optimal Viewing Distance | 5m |
| 18 | Defects Rate | ≤3/10000 |
| 19 | Color | 16777216 |
| 20 | Brightness Control | Red,Green and Blue 256 Grade/Each |
| 21 | Brightness Control | 100 continuously adjustable, automatic / manua |
| 22 | Repetition Frequency | >60-85Hz |
| 23 | Scan Frequency | >1920Hz |
| 24 | Scan Mode | 1/8 scan |
| 25 | Driving Method | Constant current |
| 26 | Power supply | DC12V |
| 27 | Life Span | 100,000 hours |
| 28 | Brightness Change Rate | <5% |
| 29 | Color Temperature | 3500~12000 (White Field:6500-12000) |
| 30 | White Balance Coordinate | Around X:Y=0.27:0.29 |
| 31 | Control Mode | 3G/4G/Earthen net/WIFI/USB |
| 32 | GPS | Yes |
| 33 | Screen Surface Flatness | <1mm |
| 34 | Temperature Operating | -30°~+60° |
| 35 | Working Humidity | 10%–95%RH |
| 36 | Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
| 37 | Power Protection | With over-temperature, over-current, over-voltage protection |
| 38 | Uniformity | Between adjoin pixels: ≤5%; Between adjoin modules:≤3% |
| 39 | Mechanical Precision | Module flatness <1.5mm patchwork accuracy <1mm |
| 40 | Screen Weight | 23kg |
FAQ
1. Q: Are you a factory or trading company ?
A: We are factory, and we are provide OEM service. we have already
established long-term relationship with many foreign companies. our
products sold all of the world. such as USA , UK , Middle east ,
Asia , etc.
2. Q: What kind of item do you mainly produce ?
A: Our factory mainly profesionally Solar power LED advertising
billboard, Solar move trailers,Solar traffic card,all kind of Solar
power energy screen.
3. Q: Do you have your own design team ?
A: Yes, we have our own design team, you could send us your
deisgned pictures, we will make them for you if we could produce.
you also can provide size and parameter description of your product
we will offer the best price for you asap.
4. Q: What is the advantage of your products ?
A: Our products are low carbon, environment protection, energy
saving. and we have a strong R&D Dep. they are profesion at
this filed.
5. Q: What is kind of after-sale service do you offer ?
A: We reply within 24hours customer problems.
6. Q: How do you packing the goods for exporting ?
A: Our goods are packing by wooden box.
