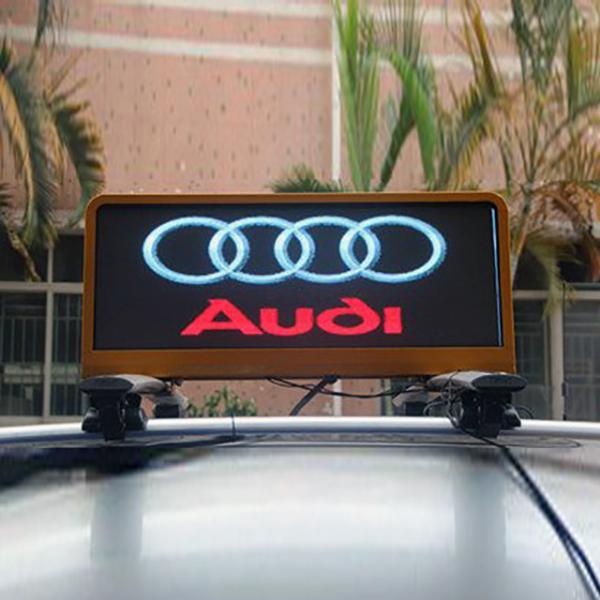

Outdoor P5 waterproof 3G/4G taxi roof led display
Product advantages:
1. High reliability. 24h/7day advertising all the time and all
weather conditions.
2. Low power consumption.12V DC input.Vehicle battery is enough to
make the taxi top LED sign work.
3. High brightness. Using P5 SMD LED display module, luminance
reach 4300nit plus. Our taxi top LED sign can be seen very clearly
in the sunlight.
4. High resolution. Compared to the traditional taxi roof screen,
screen resolution of ours reaches to 192px64p.
5. It can play a variety of media resources such as text, photos,
animation, video and so on.
6. The controlling and editing has never been as easy as now.
Through 3G or 4G network, no matter where you are,as long as your
device can access
the Internet and open your browser, you can easily control the taxi
top LED sign.
7. With GPS modules,the car can be tracked and located.
8. High quality acrylic cover keep the surface of the taxi top LED
sign always clean.
Parameter
| 1 | Pixel Pitch | 5mm |
| 2 | Pixel Configuration | 3-in-1 1R1G1B |
| 3 | Pixel Density | 40000 dot/ m2 |
| 4 | Module Size | 160*160mm |
| 5 | Module Resolution | 32 *32dot |
| 6 | Module input Voltage | 5V |
| 7 | Max Consumption | 450W |
| 8 | Average Consumption | 150W |
| 9 | White Balance Color | 6000-15000K |
| 10 | Frame Size | L:1100mm H:410mm,W:157mm(bottom),75mm(top) |
| 11 | Net Screen Size | 960mm*320mm |
| 12 | Screen Resolution | 192*64 dot |
| 13 | Brightness | >5000cd/ m2 |
| 14 | Contrast Contrast | >8000:1 |
| 15 | Horizontal View Angle | 120° |
| 16 | Vertical View Angle | 120° |
| 17 | Optimal Viewing Distance | 5m |
| 18 | Defects Rate | ≤3/10000 |
| 19 | Color | 16777216 |
| 20 | Brightness Control | Red,Green and Blue 256 Grade/Each |
| 21 | Brightness Control | 100 continuously adjustable, automatic / manua |
| 22 | Repetition Frequency | >60-85Hz |
| 23 | Scan Frequency | >1920Hz |
| 24 | Scan Mode | 1/8 scan |
| 25 | Driving Method | Constant current |
| 26 | Power supply | DC12V |
| 27 | Life Span | 100,000 hours |
| 28 | Brightness Change Rate | <5% |
| 29 | Color Temperature | 3500~12000 (White Field:6500-12000) |
| 30 | White Balance Coordinate | Around X:Y=0.27:0.29 |
| 31 | Control Mode | 3G/4G/Earthen net/WIFI/USB |
| 32 | GPS | Yes |
| 33 | Screen Surface Flatness | <1mm |
| 34 | Temperature Operating | -30°~+60° |
| 35 | Working Humidity | 10%–95%RH |
| 36 | Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
| 37 | Power Protection | With over-temperature, over-current, over-voltage protection |
| 38 | Uniformity | Between adjoin pixels: ≤5%; Between adjoin modules:≤3% |
| 39 | Mechanical Precision | Module flatness <1.5mm patchwork accuracy <1mm |
| 40 | Screen Weight | 23kg |
After-sale service
1. Our products have two years warranty service ,lifetime free
maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. We offered training to our customer who includes operating and
maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all
maintenance charges; After Maintenance period, only charge the
material costs fees free of manual work fees.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please
contact with our company, we can response in 24 hours. In order to
shorten the maintenance time, Our Company will deploy some spare
parts such as power and chips etc.
