    Double Sided P5 Taxi Top LED Sign SMD 3528 Full Color Waterproof Easy Maintenance

    Ask Lasest Price
    Brand Name : ABT
    Model Number : P5
    Certification : CE,FCC,UL.ROSH,ISO9001
    Price : USD850-USD1200 for one set
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1500Square meter/month
    Delivery Time : 7-10days after receiving payment
    • Product Details
    • Company Profile

    Double Sided P5 Taxi Top LED Sign SMD 3528 Full Color Waterproof Easy Maintenance

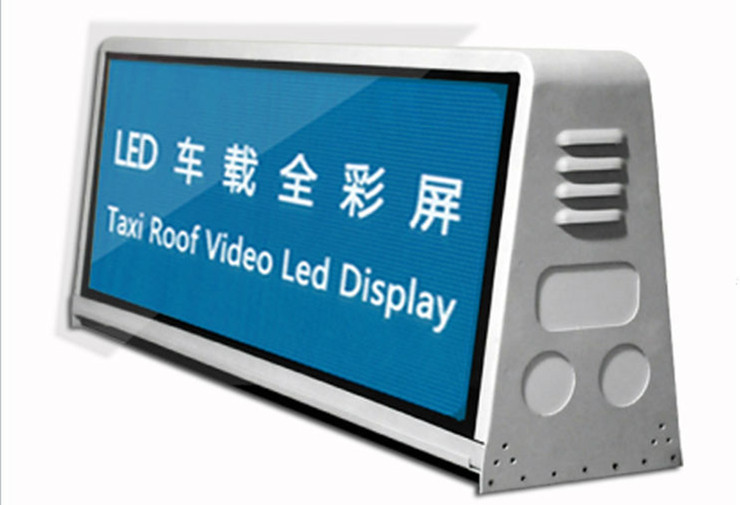

    3G/4G outdoor double sides P5 waterproof taxi top led display


    Product Features:

    1. Well Designed Cooling System
    2. Aluminum Casting with ultra thin,light weight design
    3. Easy maintenance& IP65 design&long Lasting Display
    4. Organized internal wire harnessing
    5. Powerful control software
    6. Supports flash,picture,video and text
    7. 3G High Speed data Transfer
    8. A variety of connection mode, real-time information publish.

    Specifications of P5 taxi top led display:


    LED Module Specification
    1Pixel pitch5mm
    2Resolution40,000 dots/sqm
    3LED composition1R 1G 1B
    4LED typeSMD3528
    5Module sizeW 160× H 160 mm
    6Module resolutionW 32 × H 32
    7Driving method1/8 scan constant current
    Cabinet Specification
    8Cabinet sizeW 105cm × H 38cm × T 23 cm (including the frame)
    9Cabinet resolutionW 192 × H 64
    10Cabinet quantityW 1 × H 1
    11Cabinet materialAluminum cabinet,totally waterproof front and rear, good material
    12Cabinet colorBlack/Gray
    13Cabinet weight20.5KG/PC
    14FlatnessLess than 1mm juncture
    Optical Parameters
    15Brightness≥3500CD/sqm
    16Viewing angleHorizontal 140°, vertical 140°
    17Mininum viewing distance5m
    18Gray scale1024 levels
    19Display color1.07 billion
    20Brightness adjustment0-100% 8 levels
    Power Supply
    21Input voltageDC9~36V
    22Output voltageDC5V
    23Output rated current30A
    24Output rated power consumption600W
    25Power consumption(Ave.)200W/piece
    26Power consumption(Max.)700W/piece
    Control System
    27Control methodAsynchronous control
    (Updating content can be through USB disk, WIFI, 3G)
    28Refresh rate240~1000HZ
    29Refresh frame frequency60~85HZ
    30Support VGA mode1024 x 768, 1280 x 1024, 1600 x 1200
    31Brightness correctionDot by dot, module by module, cabinet by cabinet
    Formats Supported
    32VideoAVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
    33AnimationGIF, SWF
    34PictureJPG, BMP, WMF
    Reliablity
    35Protection gradesIP65
    36Work temperature-20~+60ºC
    37Humidity(RH)10~95%
    38Life span≥100,000 hours
    39MTBF<0.0001
    40Out of control dot rate≤1/10,000




    Our Services


    Quality Guarantee
    Warrant time is 2 years, during this period; we will maintain and replace the defect components for free, if the damage is caused by fault operation, you need to pay for cost. After warranty time is over, we will offer you component parts at our bottom cost


    Technical Support
    We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. All operation manual, software, test reports are available. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided. If need, we can send our engineer to your side for instruction, and clients should pay the cost about engineer’s trip.


    Free Training
    You can send your engineers to our factory for one week free of charge training, such as: soft operation,led video processor configure,installation, adjustment, basic repairing and so on.
