P10 Stadium Perimeter LED Display SMD 3535 Waterproof IP65 ISO 9001 Approved

Ask Lasest Price
Brand Name :	ABT
Model Number :	P10
Certification :	FCC,CE,UL,ROSH,ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1500square meter/month
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

P10 Stadium Perimeter LED Display SMD 3535 Waterproof IP65 ISO 9001 Approved

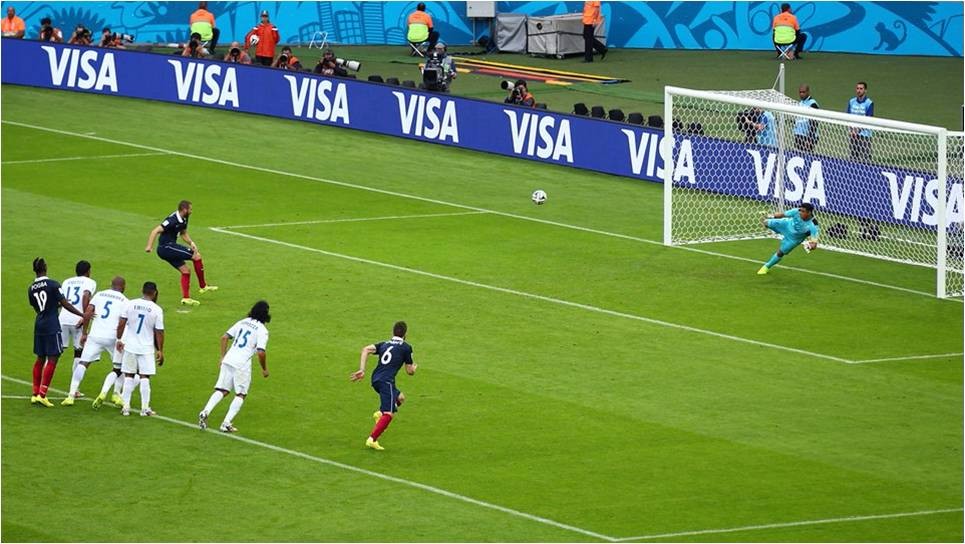

Outdoor P10 Perimeter LED Display For Football Field Advertising

Product Features and advantages:

1, According with International sport competition standard,meet UEFA stadium standard requirement,TUV-EMC certificated,used in different sport events.

2, The cabinets with special simple designs plus quick connection button between cabinets,making them convenient to install and disassemble

3, Adjustable angle,flexible angle ensure a best viewing angle,independent groud support,high stability.

4, High resolution,perfect performance,showing wonderful scene,good for advertising.

5, High protection,Waterproof IP65,adapt to different weathers.

Paramters

Module	Pitch/mm	P10
	Module size/mm	320*160
	Density of pixel/(dots/m2)	10000dots
	Pixel composition	1R1G1B
	Led encapsulation	SMD3535
	Resolution of module	32*16
Screen	Optimum viewing distance	10-150m
	View angle / °	120H,120V
	Max power consumption	1000W/sqm
	Size of cabinet/mm	960X960
	Resolution of cabinet	96*96
	Driving method	1/4 scan
	Refresh rate Hz/S	≥960
	Luminance of white balance	≥7000cd/sqm
	Operation of Environmental Temperature/℃	below 30 to above 50
	Protective grade	IP65
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	14bits
	Brightness adjustment	4096 levels of each color(manually),
	Brightness adjustment	100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	Linsn / Nova(sending card, receiving cards and Hubs)
	Average of non-failure life	>10,000h
	Life span	>100,000h
	Functionless dot rate	<0.0001

P10 Stadium Perimeter LED Display SMD 3535 Waterproof IP65 ISO 9001 Approved

After-Sales Service

1) Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equioment.
2) Installation and debugging
We could send professionals to conduct on site installation and debugging in strict.
3) Warranty
Warranty: 2 years warranty, lifetime maintenance equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges.
After maintenance period, only charge the material cost and labor cost.
5) service
Your inquiry ralated to our products or price will be replies in 24hours.
OEM&ODM. any your customized lighting we can help you to design and put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
