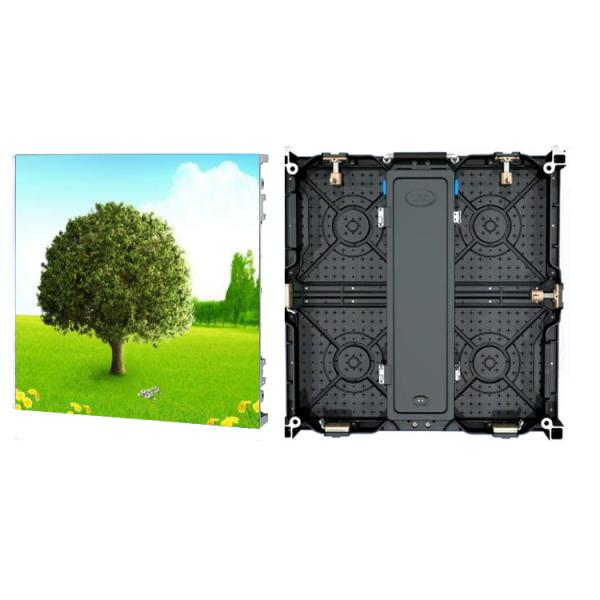

Super slim smd led display high resolution P3.91 p4.81 indoor led
video wall
Product Description
Features :
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent
visual effect from every angle.
3. The integration of lamp and driving IC,together with with the
multi-circuit structure, achieves evenly-distributed current,low
power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and
weather ability.
5. High contrast ratio. Adopting black lamps can improve the
contrast ratio by 50%.
6. High refresh rate, high gray scale,ghost-canceling, low power
consumption, low EMI, anti-creeping, multi-route redundancy
backup-supporting,and dot-by-dot-calibration.
Application
Widely applied to traffic information distribution of station, quay
and airport, conference room, shoppingmall, brand presentantion,
TVstation, stageshow, concert and so on.
Details image:
|
Type | SMD2121 black body | Chip parameters | Red λd:(620-625nm) IV:(800-960mcd) |
Color | 1R1G1B | Chip parameters | Green λd:(520-525nm) IV:(1350-1650mcd) |
Brand | Epistar | Chip parameters | Blue λd:(470-475nm) IV:(330-400mcd) |
|
Pixel Pixel | 3.91 mm | Module Size | 250×250mm |
Module Resolution | 64×64=4096(Dots) | Module Weight | 0.5kg |
LED Display Cabinet |
Pixel Density | 65410 Dots/㎡ | Frame Frequency | no less than 60 frame/sec |
Cabinet Resolution | 128×128=16384(Dots) | Input Voltage | AC110-220V±10%,50/60Hz |
abinet Dimension(W*H*D) | 500×500×95mm | Output Voltage | DC-5V,40A/60A/80A |
Module Quanty /Cabinet | 2×2=4(Pcs) | Grey Scale Levels | 16bit |
Cabinets Material | Aluminum-magnesium alloy Cabinet | Color Processing | R(1024)×G(1024)×B(1024) |
Cabinet Weight | 5kg | Brightness Adjustment | 256 color levels |
Brightness | ≥1500cd/㎡ | MTBF( mean time between failures) | 5000 hours |
Viewing Angle | 120(Horizontal),120(Vertical) | Life-span | 100,000 hours |
Nearest Viewing Distance | 7m | Protection Level(front/back) | IP43/IP54 |
Power Consumption (Max) | 1000 w/㎡ | Malfunction Dot Rate | less than 0.0001 |
Power Consumption (Average) | 300 w/㎡ | Working Temperature | -30℃~50℃ |
Display Function | Text,Graphics,Video | Humidity | 15%~85% |
Refresh Rate | ≥1000Hz | Drive Mode/Driver Position | Constant driving 16 Scan,Combined diver board |
|
Control Mode | Synchronization/Asynchronization | Control System | Sending Card, Receiving Card,Receiving HUB |
PC Operating System | Microsoft Windows 7, XP and Vista | Software | ED Studio Nova/Linsin |
Communication Type | Net cable,3G,WIFI(Sold separately) | Control Card Input | DVI,USB,RJ45,HDMI(Sold separately) |
Language | Chinese,Traditional
Chinese,English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic
- See more at:
http://www.mlxled.com/PH4-indoor-Rental-LED-Screen.html#sthash.lUxfqu8b.dpuf |
Our Service
1. Pre-sales service :
Our team design and make solutions based on different requirements
from different customers, what you think is what we can do.
2. After-sales services:
1). We provide customer service through Skype, phone or email,
supply you video or drawing to solve problems.
2). We provide remote control service through internet to achieve
real time service, which will short time of solving problems.
3). We provide professional engineer one-to-one to keep fastly
reply.
3. Installation Service:
1). We provide detailed CAD drawing to customer for preparing metal
structure.
2). We could dispatch our engineer to your place , guide
installation and free training.
3). Special designs have special solutions; we will make perfect
solutions to satisfy all customers' requirements.
