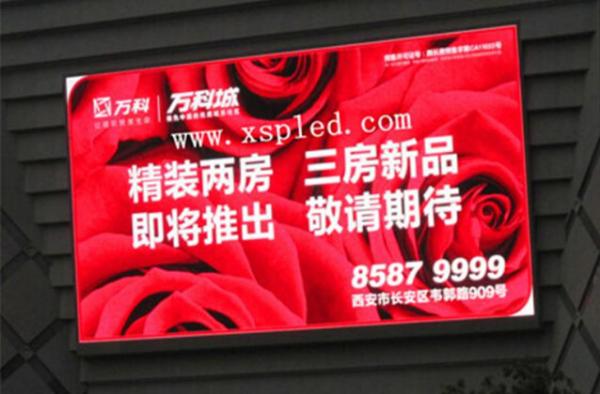

IP65 SMD led module P5 Outdoor LED Advertising display
Product Advantage
1) super flatness& uniformity, large view angle, high brightness;
2) screen can work under very strong sunlight;
3) outdoor standard cabinet applied with strong humidity resistance
ability as well as corrossion resistance
ability; cabinet still works in good condition under all kinds of
bad weather; strong durability;
4) wide application usage, high IP grade,cost effective, customers
can enjoy high-quality visual effect with
favorable price, greatly lower investment cost.
Applications: Widely used for advertising, sports, industrial enterprise,
transportation, stations, terminals, airports, construction,
education system and other public places etc.
Product Parameters
| Item | outdoor full color led display |
| Model Number | p5 |
| Pixel Pitch | 5mm |
| Pixel Density(dots/m²) | 40000 |
| Pixel Configuration | 3IN1 |
| LED Type | SMD2727 |
| Module size(mm) | 160*160 |
| Module Resolution(dots) | 32*32 |
| Min.Viewing Distance(m) | ≥5 |
| Brightness(cd/m²) | ≥10000 |
| Viewing Angle(degree) | ≤120° |
| Average Power Consumption(w/m²) | 500-850 |
| Scan Mode | 1/8 |
| Protection Level | IP65 |
| Cabinet Size(mm) | 640*640 |
| Color Temperature | The brightness of R.G.B.is adjustable according to software
100level;Color temperature is adjustable in terms of detailed
requirements |
| Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
| Refresh Rate | LED screen refresh frame frequency recommended is no less than
1200HZ(recommended) |
| Color | 64g color(on the condition of 4096 gray scale) |
| Horizontal/Vertical viewing angle | <120° |
| Gray Scale | Recommended 14BIT |
| Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100
meters,max transmission distance is 130 meters. |
Our Services
Quality Guarantee
Warrant time is 2 years, during this period; we will maintain and
replace the defect components for free, if the damage is caused by
fault operation, you need to pay for cost. After warranty time is
over, we will offer you component parts at our bottom cost
Technical Support
We provide technology training for free, which contains the
operation and maintenance training of the LED screens in the
factory. All operation manual, software, test reports are
available. Any associated CAD drawing on how to fix up the display
and some other expert suggestion will be provided. If need, we can
send our engineer to your side for instruction, and clients should
pay the cost about engineer’s trip.
Free Training
You can send your engineers to our factory for one week free of
charge training, such as: soft operation,led video processor
configure,installation, adjustment, basic repairing and so on.
