Front Open Cabinet 1/4 Scan P10 Outdoor Full Color LED Display Screen IP65

Shenzhen Always Bright Tech Limited
Contact Now
    Buy cheap Front Open Cabinet 1/4 Scan P10 Outdoor Full Color LED Display Screen IP65 from wholesalers

    Buy cheap Front Open Cabinet 1/4 Scan P10 Outdoor Full Color LED Display Screen IP65 from wholesalers
    • Buy cheap Front Open Cabinet 1/4 Scan P10 Outdoor Full Color LED Display Screen IP65 from wholesalers

    Front Open Cabinet 1/4 Scan P10 Outdoor Full Color LED Display Screen IP65

    Ask Lasest Price
    Brand Name : ABT
    Model Number : P10
    Certification : FCC,CE,UL,ROSH,ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1500square meter/month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Front Open Cabinet 1/4 Scan P10 Outdoor Full Color LED Display Screen IP65

    Front open cabinet 1/4 scan Full color P10outdoor advertising led display


    Description

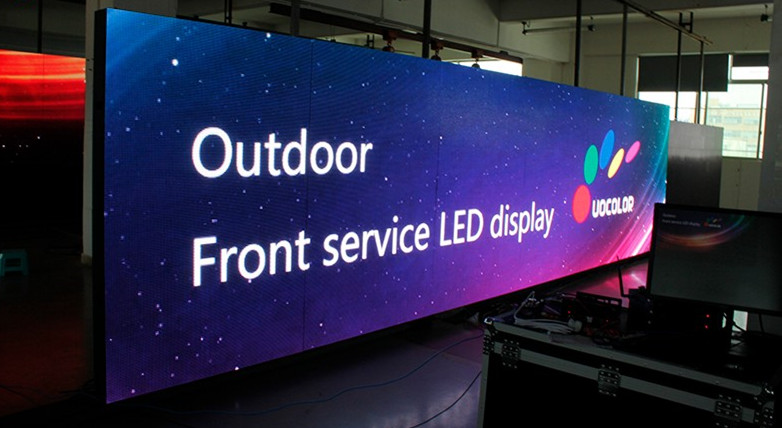

    Front service outdoor LED display


    1. Front service design, easy maintenance.

    2. IP65 grade, all weather available.

    3. High referesh rate, ≥1920Hz

    4. Gray scale ≥65536


    P10 Outdoor Full Color LED Display

    Item

    Techinical Specifications

    Pixel Pitch

    10mm

    LED Configuration

    DIP346 (1R1G1B)

    Pixel Density

    10000 pixels/sq.m

    Module Size

    320mm*160mm

    Module Resilution

    32pixel*16pixel

    Cabinet Size

    960mm*960mm (customized size)

    Cabinet Resolution

    96pixels*96pixels

    Cabinet Material

    Iron/Aluminum

    Cabinet weight

    45kg/sqm or 40kg/sqm

    Brightness

    7000cd/sqm

    Colour temperature

    3500K-9500K(adjustable)

    Viewing Angle

    H:110°/V:55°

    Brightness Uniformity

    ≥97%

    Brightness Adjustment

    Manual/Auto/Programmable

    Ave. Power consumption

    200 W/sqm

    Max. Power consumption

    600W/sqm

    Input Voltage

    AC220V/50HZ or AC110V/60HZ (±10%)

    Output Voltage

    5V,40A

    Best Viewing Distance

    10m~100m

    Contrast ratio

    5000:1

    Frame rate

    50/60 Hz/sec

    Refresh rate

    ≥1920Hz

    Grey scale levels

    R(256bit) x G(256bit) x B(256bit)

    Display Colors

    R(1024) x G(1024) x B(1024)

    Protection Level

    IP65

    Life-span

    100,000 hours

    MTBF

    10,000 hours

    Malfunction dot rate

    < 0.0001

    Storage Temp/Humidity

    -30~+60℃/10~90%RH

    Operating Temp/Humidity

    -20~+60℃/10~90%RH

    Drive Mode

    1/4 scan

    Control System

    Synchronous/Asynchronous/Wifi/3G Wireless for choice

    Input Signal

    RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc

    PC Operating System

    Microsoft Windows 7, 8, 98, 2000, XP and Vista


    After-Sales Service


    1) Training after order
    After the order is placed, a processional training will be offered, including software use, operate safety, maintain equioment.

    2) Installation and debugging
    We could send professionals to conduct on site installation and debugging in strict.

    3) Warranty
    Warranty: 2 years warranty, lifetime maintenance equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.

    4) Maintenance
    Maintenance principles: response in time, solve problems asap and ensure the use.
    Maintenance period: In the maintenance period of the led display body, free of all maintenance charges.
    After maintenance period, only charge the material cost and labor cost.

    5) service
    Your inquiry ralated to our products or price will be replies in 24hours.
    OEM&ODM. any your customized lighting we can help you to design and put into product.
    Distributorship are offered for your unique design and some our current models.
    Protection of your sales area, ideas of design and all your private information.
    Top Quality+Reasonable Price+Responsible After Service=Successful&Win
