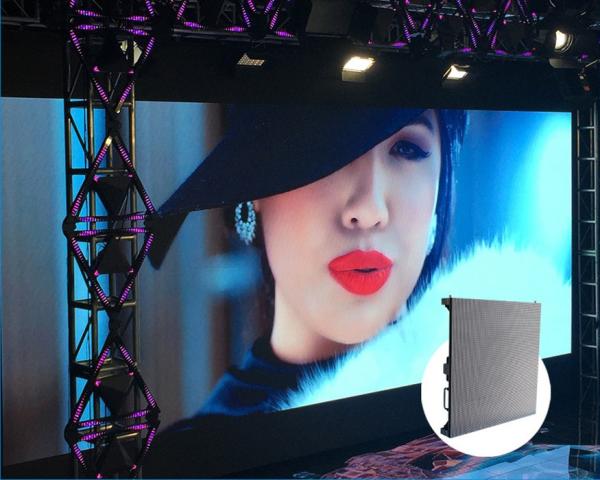

Full color SMD3528 P6 indoor led video display for rental
P6 Full Color Indoor Led Video Display Product Detail
1. Indoor Extrusion Aluminium , Quick Assemble
Extrusion Aluminium cabinet 576mmx576mm, 0.1mm gapline between 2
cabinets High technology design, high flatness.
2. Correction Technology and Broadcasting Level
good uniformity, adopt dot correction technology, picture pure and
vivid showing. Vertical/Horizontal 140, CT/Brightness adjustable,
broadcasting level.
3. Easy Maintenance and Low Power Comsumption
Easy maintenance, low cost on maintenance, quick assemble, hotplug
in power. Power & System double backup, Optional high reliable N+1
powering,double signal,automatic change No need Fan, noiseless, low
power comsumption.
Product Parameters
| Unit module |
| Module size | 192*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Display color | Full color |
| Led specification | 3528 dotmatrix 3 in 1 |
| Pixel resolution | W:32dots*H:32dots |
| Cabinet |
| Dimension | 576*576*80mm |
| Quantities of module | 9pcs |
| Power supply | 1pcs |
| Thermal discharge | Fan*1pcs |
| Total weight | 8kg |
| Best viewing angle | 2-50m |
| Temperature | Storage: -20℃~+60℃ |
| Working: -20℃~60℃ |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power |
| Working voltage | AC220V/110V±10% |
| Average power consumption | 200-350W |
| Max. Power consumption | ≤800W/sqm |
| Current | ≤60A(single LED) |
| Control system |
| Type | LINSN/Nova/HD |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization&Asynchronization |
Our Services
Quality Guarantee
Warrant time is 2 years, during this period; we will maintain and
replace the defect components for free, if the damage is caused by
fault operation, you need to pay for cost. After warranty time is
over, we will offer you component parts at our bottom cost
Technical Support
We provide technology training for free, which contains the
operation and maintenance training of the LED screens in the
factory. All operation manual, software, test reports are
available. Any associated CAD drawing on how to fix up the display
and some other expert suggestion will be provided. If need, we can
send our engineer to your side for instruction, and clients should
pay the cost about engineer’s trip.
Free Training
You can send your engineers to our factory for one week free of
charge training, such as: soft operation,led video processor
configure,installation, adjustment, basic repairing and so on.
