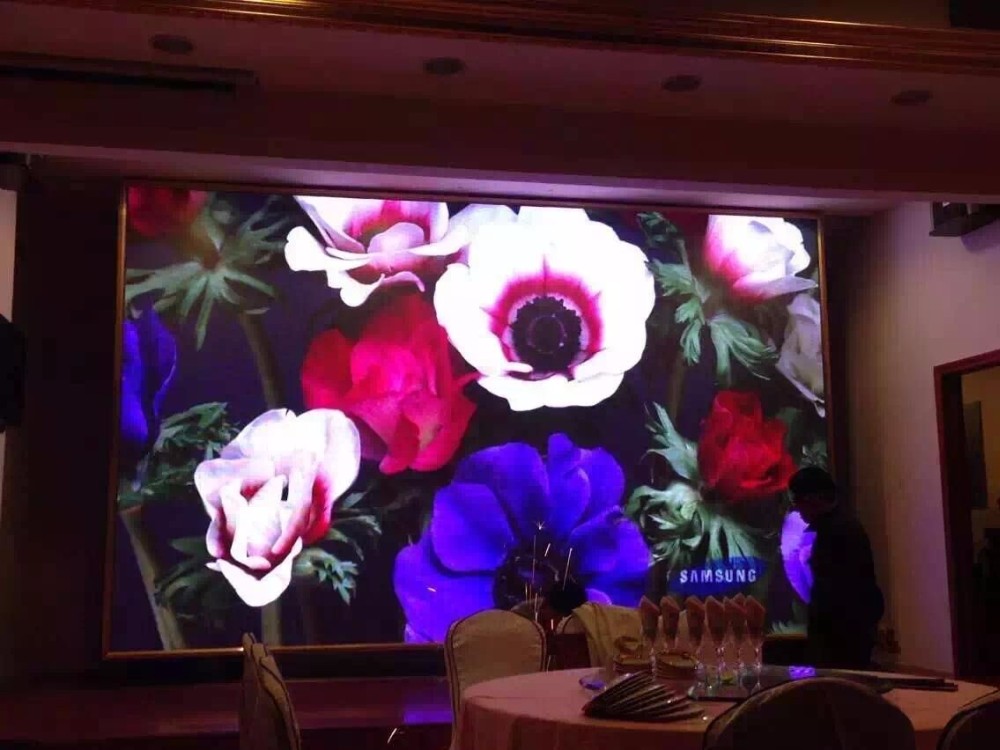

Advertising screen full color indoor P5 Large led display
Features:
1) High intensity and can be adjusted, so can meet the request of
the customers according the application environment.
2) Best equality, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real
display effect.
4) Can repair each led lamps, so the cost of maintain is lower, and
easy to repair.
Specifications:
| Parameter | Value |
| Pixel Configuration | SMD2121 |
| Pixel pitch (mm) | 5 |
| Pixel matrix per panel | 128*128 |
| Pixel density (pixelsm) | 40000 |
| Cabinet Dimensions(L*W) mm | 640*640mm |
| Module Dimensions(L*H) mm | 320*160 |
| Panel material | Aluminum or iron&die-casting alunmin |
| Cabinet weight (kg/panel) | 13 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m
single mode fiber:<10km |
| Brightness (nit) | 2000 |
| Optimal horizontal viewing angle (degree) | 140 |
| Optimal vertical viewing angle (degree | 120 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 270/420 |
| Ac input power typical value (wm) | 90/140 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | -20-65 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |
| Working humidity (rh) | 10%-90% non-condersing |
| Lifetime Typical value (hrs) | 100000 |
FAQ:
1. Can you assign engineer to our site to guide the installation if
we require?
Yes. We have qualified and experienced engineers who are ready to
service for you.
2. How about your warranty and after-sale policy?
Two years warranty is free..
We provide 24 hour phone answering service and real-time remote
control service if you have any problem with our led screen.
3. How long time I can get the cargos after placing the order ?
Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can
start production, we will update the production details in time;
Before finish, we will notice you and after we get full payment, we
can delivery the goods to you.
About the time from start port to destination, that depends on the
distance and the state of the sea company or airport company
4. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led
chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
5. How I can make payment?
We support T/T, West Union and so on.
And about payment, we need you pay us 30% as deposit, for the rest
part, before delivery.
