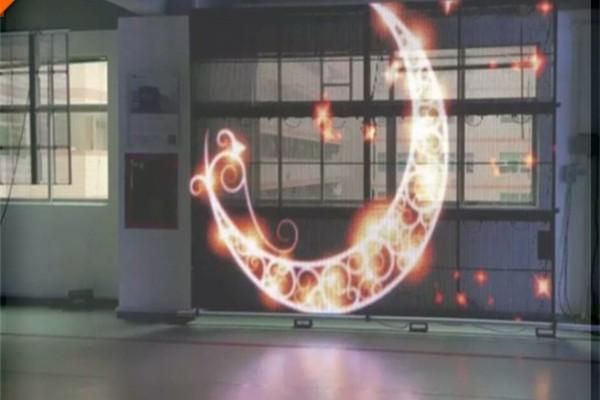

High Quality Transparent LED Display P10 on Glass Wall LED Screen
Product Description
Function and Technology Character:
1. Support multiform file formats, such as VGA, Video, AVI, MOV,
MPG, DAT, VOB and so on
2. The screen can get singal of camera, video, VCD, DVD, LD, TV and
so on.
3. Brightness, contrast, saturation can be adjusted automatically
by itself and manual.
4. Clear picture without flicker and distortion.
5. Show everything with your PC synchronously.
6. Super correcting technology for distortion.
7. One interface for sound signal and two ports for video signal at
least.
8. Connected and controlled by PC via Lan and remote control.
9. Multiform language are available,such as English, French,
Germany, Spanish, Russian and so on
Specifications:
| No | Specifications | |
| 1. | LED chip | Epistar 3528 (Anti-UV) |
| 2. | Physical Pixel Pitch | 10mm |
| 3. | Physical Pixel Density | 10000(dots/sqm) |
| 4. | Pixel composition | 1R1PG1PB |
| 5. | Moduel Size | 320*320mm |
| 6. | Moduel resolution | 32*32dots |
| 7. | Cabinet thickness | 1cm |
| 8. | Bracket of cabinet | Easy to install and dismantle |
| 9. | Brightness | ≥ 6000cd/m2 |
| 10. | Colors | 16.7millio |
| 11. | Viewing angle | Horizontal 120°-140°, Vertical 90° |
| 12. | Viewing distance | 10m -200m |
| 13. | Soft Rubber Mask | To protect player and LED display itself . |
| 14. | Scan frequency | >1920 hz |
| 15. | Video Frame Rate | ≥60 fps |
| 16. | Color temperature | 6500°K to 9500°K adjustable |
| 17. | Control method | synchronous control by PC or Asynchronous control |
| 18. | Life span( half brightness) | ≥100,000 hours |
| 19. | Weight | 14Kg/sqm |
| 20. | IP rate | IP43 front |
| 21. | Average power consumption | 390W/sqm |
| 22. | Peak power consumption | 1000W/sqm |
| 23. | Input voltage | AC220V/50Hz ±10% or AC110V/60Hz ±10% AC380V/60Hz ±10% |
| 24. | Operating Environment | Temperature:-20 - +60 Humidity:10%-95%RH |
| 25. | Operating system | Windows XP/7/8/10 or Mac OS |
| 26. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI |
Applications
Any building with glass wall, for example, bank, shopping mall,
theatres, chain stores, hotels, and landmarks etc.
After-sale service
1.Our products have two years warranty service ,lifetime free
maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and
maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all
maintenance charges; After Maintenance period, only charge the
material costs fees free of manual work fees.
5.Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please
contact with our company, we can response in 24 hours. In order to
shorten the maintenance time, Our Company will deploy some spare
parts such as power and chips etc.
FAQ:
1. Are you factory?
Yes, we have very rich experience in production and development.
you will got better service and delivery on time.
2. How is your delivery time?
We delivery as contract on time, All kinds of led module have in
stock. We will be fine as compensation.
3. What is your products packing?
We provide 3 kinds of packing case: carton paper case,wooden
packing case and flight packing case.
Carton paper case for led module
Wooden packing case for heavy iron cabinet
Flight packing case for rental aluminum die-casting cabinet
4. Quality gurantee:
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,FCC,RoHS certificates.
5. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and
you’ll get helpful suggestions from us.
