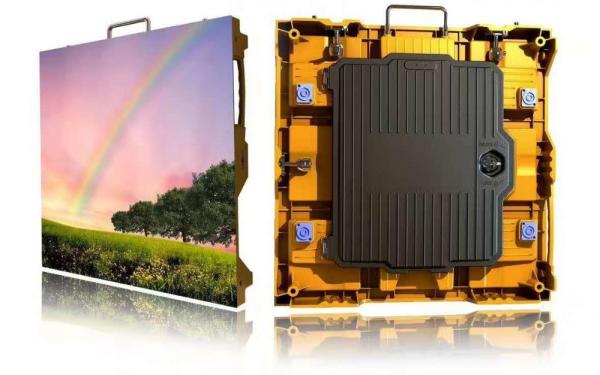

High Definition Video P3 indoor full color 1R1G1B rental led video
display
Product Description
(1) High definition, 111111pixels/sqm, can show vivid images and
video clearly. It's mainly for conference, meeting room, where it
needs connect camera for live video.
(2) Just 8 KG per panel,80mm thickness, can stand alone.
(3) It is extremely easy to calculate the size of LED screen.
(4) With die-casting aluminum cabinet, tolerance can be controlled
within 0.2mm so the surface is very smooth.
(5) We have u unique masks so the surface is very smooth, viewing
angle is wider than other suppliers in China!
(6) The panel can be hung on truss or stacked on floor.
We produce a lot so we have good prices and stable quality, welcome
to contact us for more details.
| Pixel Pitch | 3mm |
| Pixel Density | 111111dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 192mm x 192mm/192mm x 96mm |
| Module Resolution | 64dots x 64dots/64dots x 32dots |
| Drive Mode | 1/32 Scan |
| Standard Cabinet Size | 576mm x 576mm |
| Cabinet Weight | 8KG |
| Drive IC | JXI 5020 |
| Brightness | ≥1200 cd/sqm |
| Viewing Distance | 3m-30m |
| Viewing Angle | H: 140°; V:120° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 1000W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS |
After-Sales Service
1) Training after order
After the order is placed, a processional training will be offered,
including software use, operate safety, maintain equioment.
2) Installation and debugging
We could send professionals to conduct on site installation and
debugging in strict.
3) Warranty
Warranty: 2 years warranty, lifetime maintenance equip with free
spare parts. The first 2 years after shipment, we will be
responsible for free maintenance if any problem caused by quality
itself. While you should take the cost of the freight to us. After
2 years, service is still available, but would charge for labor,
material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and
ensure the use.
Maintenance period: In the maintenance period of the led display
body, free of all maintenance charges.
After maintenance period, only charge the material cost and labor
cost.
5) service
Your inquiry ralated to our products or price will be replies in
24hours.
OEM&ODM. any your customized lighting we can help you to design
and put into product.
Distributorship are offered for your unique design and some our
current models.
Protection of your sales area, ideas of design and all your private
information.
Top Quality+Reasonable Price+Responsible After
Service=Successful&Win
